Welding transformer

Electrode welding

MMA Welding and Arc Gauging

TW 200-MMA welding transformer for 230 V and 440 V mains simple, reliable, robust and good welding units, with enough power for the professionals. Copper windings and fan cooling, good striking and welding properties, applicable for many electrodes.

IW 321 electrode inverter
Industrial type unit, for high loads, 300 A carrying machine, for all electrodes; with remote control, arc force and hot start.

CW 450/600/800-MMA welding rectifiers - High performance rectifier (Chopper) for electrode welding, arc gouging and TIG DC (Lift arc). Very good welding properties by all electrodes including cellulosic. Full electronic control of welding current, hot start, arc force and anti stick, remotecontrol connection and digital instruments. Absolutely suitable for building site and Offshore. Universal connection for different mains voltages. Highest energy efficiency according standard IEC 61000 (1-11). Less input power, longer lifetime, working stable in extreme mains voltage fluctuations.
Option: 3x 400 V or 3x 500 V, 440 V / 575 V

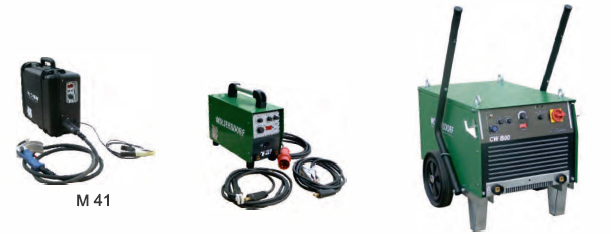

With wire feeder M 41 for MIG/MAG welding.

Produktionsstandort-Deutschland

elektrodenschweissen





TW 200 IW 321 CW 450 CW 600 CW 800
Art.- Nr 11112 11152-d 11305 11306 11307
einphasige-netzspannung 230/400V, 50/60Hz
dreiphasrige-Netzspannung   400V, 50/60Hz 400V, 50/60Hz 400V, 50/60Hz 400V, 50/60Hz
leerlaufspannung 46 -55V 81V 74V 75V 76V
traege-sicherung T 16A T 16A T 25A T 35A T 63A
stromeinstellbereich 55 - 180A 5 - 300A 10 - 450A 10 - 600A 20 - 800A
einschaltdauer

180A - 35%
120A - 60%
90A - 100%

300A - 30%
250A - 60%
200A - 100%
450A - 40%
400A - 60%
330A - 100%
600A - 40%
550A - 60%
450A - 100%
800A - 40%
700A - 60%
600A - 100%
schaltstufen 12
stufenlose-regelung
schutzart 21 23 23 23 23
verwendung-schweissgeraete-bei-erh-elektr-gefaehrdung
masse 440x x220 x 330 410 x 200 x 340 830 x 630 x 640 830 x 630 x 640 830 x 630 x 640
gewicht 27 13 110 133 165
gleichschweissstrom 0
elektrodenstaerke 2,0 - 3,25 (4,0) 2,0 - 4,0 (5,0) 2,0 - 5,0 2,0 - 6,0 2,0 - 6,0
zuendung
Hot Start
Arc Force
Arc Gauging



Explanation of symbols
