MIG INDUSTRY SYSTEM

MIG/MAG

MIG Industry system

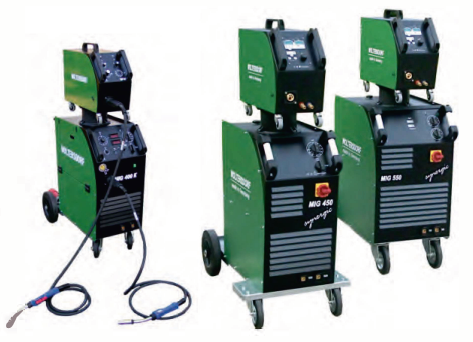

Step controlled MIG/MAG welding machines with separate wire feeder – always the right machine for the right application, powerful and robust. Easy of use for industry, craft and training. Very good welding properties and quality on steel, stainless and aluminium. For CO2, Ar and mixed gases; welding wires 0,8 – 2 mm. Universal application through separate wire feeders.

MIG 400K – a compact welding machine with separate wire feeder

MIG 550W/WF 41C – Heavy duty welding machine for application in heavy steel and machine building. Excellent welding properties, 40 step voltage control, liguid cooling. Very robust and reliable in industrial applications, digital volt and ampere meter standard.
Option: program control digital or analog

All MIG/MAG welding machines with technically complete equipment, industry-4-rolls wire feeder, electonic control board with 2/4-stroke, burn back, wire speed test.
Powerful liquid cooling.

Option: program control digital or analog







Funktion
MIG 310 - MIG 550 WI WF41C

digital*

digital

analog

analog

DV-Regelung mit Hand
Leistungsauswahl über Materialstärke -
Volt/ Ampere -
Gas Test -
Drahteinschleichen einstellbar
Drahtrückbrand einstellbar
Punktschweißen -
lntervallschweißen -
Gasvorströmen -
Drosselstärke wählbar
2/4 Takt

Option
synergic mit:

  • Drahtvorschubkorrektur
  • Materialauswahl



Volt/Ampere








standard










Produktionsstandort-Deutschland

mig-industrie-system







MIG 400 K
MIG 350 L MIG 450 W MIG 550 W
Art.- Nr 05404-KWF 09354-LWF 05454-WWF 09550-WWF
dreiphasrige-Netzspannung 400 V, 50/60 Hz 400 V, 50/60 Hz 400 V, 50/60 Hz 400 V, 50/60 Hz
traege-sicherung 32AT 25AT 32AT 35AT
stromeinstellbereich 40-400A 30-350A 50-450A 60-550A
einschaltdauer 400A - 40%
350A - 60%
350A - 40%
300A - 60%
450A - 40%
400A - 60%
520A - 40%
500A - 60%
420A - 100%
schaltstufen 20 20 20 40
schutzart 23 23 23
verwendung-schweissgeraete-bei-erh-elektr-gefaehrdung
masse PS= 950 ...
WF= 550 ...
... x 360 (485) x
...x 230x ...
... 860
... 450
950 x 450 (570) x 950
550 x 230 x 450

gewicht 135
17
115
17
150
18
203
18
4-rollen-drahtvorschub 2x
drahtstaerke 0,8 - 1,2 00,8 - 1,2 0,8 - 1,2 (1,6) 0,8 - 1,2 (2,0)
max-rollendurchmesser D/K 300 D/K 300 D/K 300 D/K 300
verbingungskabel 1 -50m 1 -50m 1-40m 1-40m
Synergie Option Option Option Option
V/A ✓* ✓* ✓*
Watercooling - -



Explanation of symbols
