230 V Electrode welding, WIG - TIG/MMA welding inverters

TIG DC and AC/DC

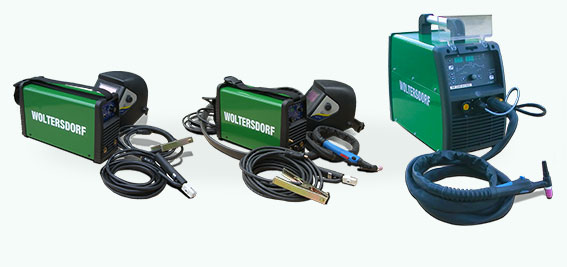

Mobile AC/DC- and DC-welding inverter

IW 160 E  (1x230 V)
electrode welding inverter for electrode TIG-Liftarc

Fittings: switchable, antistick, hotstart, arcforce

IW 160 EP (1x110-230 V +/- 15%)
electrode welding inverer with power factor correction  (PFC) for different different mains voltages and long supply lines on construction sites

Fittings: switchable - electrode / TIG-Liftarc, antistick, arcforce, hotstart

IW 160 TIG-PULS (1x230 V)
TIG-welding inverter with complete fittings for TIG- and electrode-welding
Fittings:high-frequency ignition, TIG liftarc, 2 and 4 stroke, digital instrument, TIG secondary parameters preselected, PULS function for thin sheet welding, gas testing, E-welding with hotstart and arcforce

IW 220 AC/DC-PULS (1x230 V) is a welding inverter for TIG welding aluminium, stainless steel, steel, copper
as for electrode hand welding. The inverter with complete technical equipment is versatile.
Fittings: digital instrument, impuls welding high-frequency ignition, 2 and 4 stroke, balance control in AC, frequncy control in AC: 50-200 Hz, Up and Down Slope adjustable, Gas pre-flow and gas post-flow time adjustable, remote control on the TIG torch, electrode hand welding with hot-start, arc force, anti-stick





Produktionsstandort-Deutschland

elektrodenschweissen





IW 160 E
IW 160 EP
IW 160 TIG PULS
IW 220 AC/DC - PULS
Art.- Nr 11-IW-160-E 11-IW-160-EP 11-IW-160-TP 11418-P
einphasige-netzspannung 230V, 50/60Hz 230V, 50/60Hz 230V, 50/60Hz 230V, 50/60Hz
traege-sicherung 16AT 16AT 16AT 16AT
stromeinstellbereich 10 - 160A 10 - 160A 5 - 160A AC 10 - 200A
DC 5 - 200A
einschaltdauer

160A - 25%
100A - 60%

160A - 25%
110A - 60%
100A - 100%

160A - 40%
100A - 60%
80A - 100%
WIG: 200A - 25%
E: 170A - 25%
110A - 60%
schaltstufen - -
stufenlose-regelung
schutzart 23 23 23 23
verwendung-schweissgeraete-bei-erh-elektr-gefaehrdung
masse 340 x 120 x 200 390 x 135 x 230 370 x 135 x 230 500 x 240 x 370
gewicht 6 7,5 8 21
gleichschweissstrom - - -
elektrodenstaerke 2,0 - 3,25 (4) 2,0 - 3,25 (4) 2,0 - 3,25 (4) 2,0 - 3,25 (4)
Watercooling - - - Option

Explanation of Symbols
