MIG/MAG

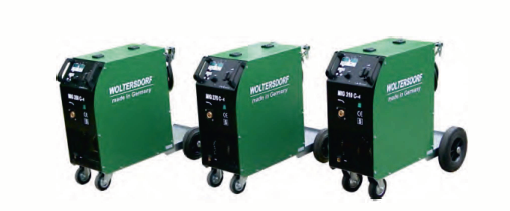

MIG/MAG-compact welding machines
MIG 330 E / 280 E is a universal welding machine fort the middle power range. The welding machine has very good welding properties from 0,8 – 10 mm plate thickness. It can be used for welding steel, stainless steel and aluminium with all gas mixtures, CO2 and argon. The precise 4-rolls wire feeder and the full electronic control guarantee a safe wire feeding for aluminium too. The wire speed is automatically controlled through synergic control. The welding parameters are stored in welding curves and allow a very simple setting. Precise adjustment of welding current and welding voltage using digital display.
Data sheet:
MIG 330 E - 280 E
|
Function |
|
| automatically wire speed and voltage | ✓ |
| Digital instrument Volt/Ampere: m/min. | ✓ |
| gas test | ✓ |
| soft start | ✓ |
| Gas pre-flow | ✓ |
| 2/4 stroke | ✓ |
| synergic for wire ø 0,8; 1,0 and 1,2 mm for material Fe, CrNi, Alu and special material with correction wire speed | ✓ |
| inductor | ✓ |
|
|
MIG 280 E | MIG 330 E | - |
| Art.- Nr | 23280-E | 23330-E | |
 |
400 V, 50/60 Hz | 400 V, 50/60 Hz | |
 |
T 16A | T 16A | |
 |
30 - 280A | 40 - 330A | |
 |
280A - 40% 250A - 60% 210A - 100% |
330A - 30% 250A - 60% 210A - 10% |
|
 |
✓ | ✓ | |
 |
23 | 23 | |
 |
✓ | ✓ | |
 |
790 x 280 (415) x 710 | 790 x 280 (415) x 710 | |
 |
42 | 41 | |
 |
✓ | ✓ | |
 |
0,6-1,0 (1,2) | 0,6-1,0 (1,2) | |
 |
D/K 300 | D/K 300 | |
| Synergie | Option | Option | |
| V/A | ✓* | ✓* |
